173/174 Latch Body & Strikes

Product Description
£74.99 inc vat
Maximum quantity available reached.

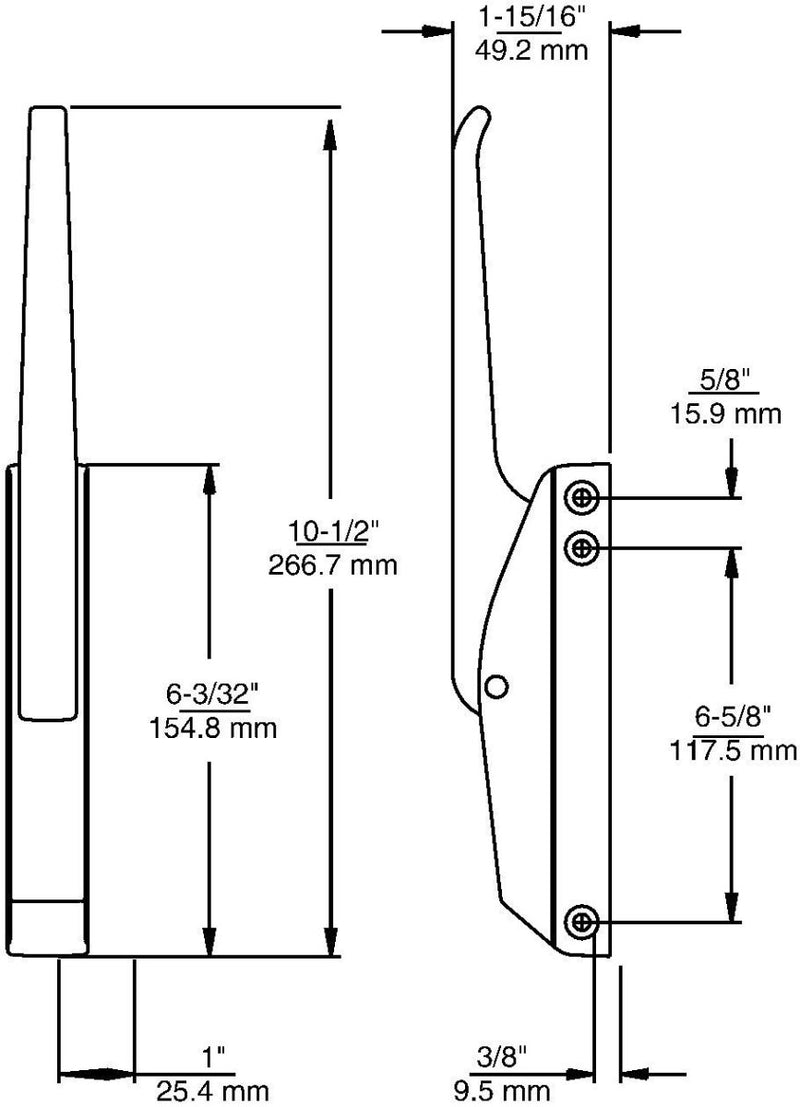

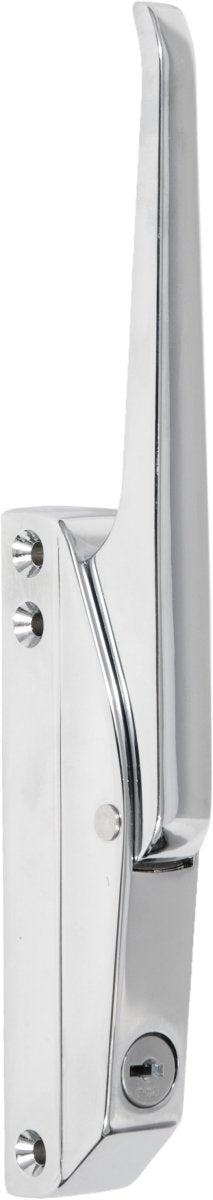

173 / 174 - Latch Body
• Positive latching keeps door shut tight; guards against pop-opens
• Finger-tip touch opening
• Cylinder locking and non-locking models
• Two-way adjustment compensates for door sag and gasket wear
• Use with all standard gaskets for economical installation
• Compact size fits most units
• Material: High pressure die-cast zinc latch, die-cast and steel strike
• Finish: Polished chrome
• Mounting: Latch is edge mounted; strikes are surface mounted. Drilled and
countersunk for 5.0mm (No. 10) screws
• Spare Keys can be purchased separately

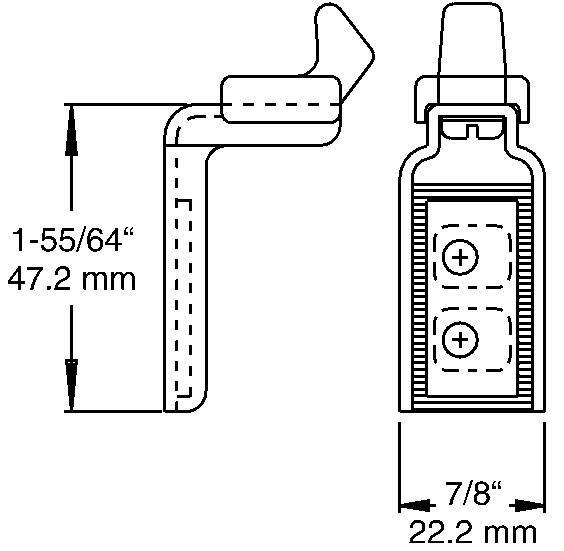

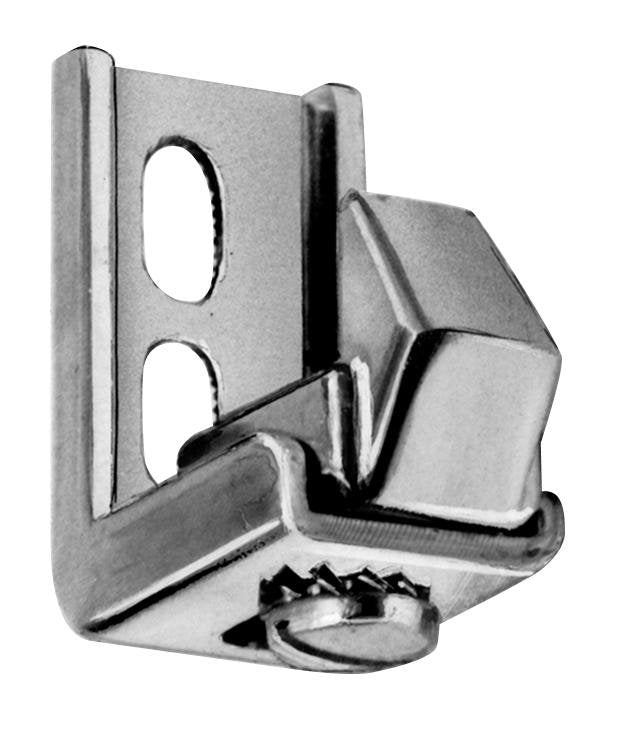

173 - Universal Strike
• Strike Adjustment Range: 7.1mm to 15.1mm (9/32” to 19/32”)
• Mounting: Strike drilled for 5.0mm (No. 10) screws

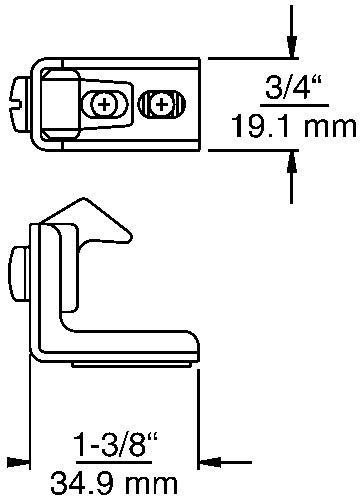

174 - Standard Strike
• Strike Adjustment Range: 10.3mm to 18.3mm (13/32” to 23/32”)
• Mounting: Strike drilled for 5.0mm (No. 10) screws
• High Temp Oven latch version available

Sku: 0173C00004
